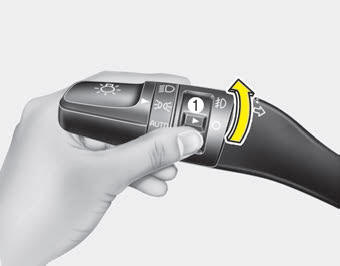

Fog lights are used to provide improved visibility when visibility is poor due to fog, rain or snow, etc. The fog lights will turn on when the fog light switch (1) is turned to the on position after the headlight is turned on.
To turn off the fog lights, turn the fog light switch (1) to the OFF position.
When in operation, the fog lights consume large amounts of vehicle electrical power. Only use the fog lights when visibility is poor.
Components and Components Location
Component Location
1. Auto light sensor2. Head lamps3. Lighting switch (Auto)4. Tail lamps5. BCM (Body Control Module)
...
Schematic Diagrams
Circuit Diagram (1)
Circuit Diagram (2)
Circuit Diagram (3)
Circuit Diagram (4)
SRSCM Connector terminal
Pin Function (Connector A)Pin Function (Connector B)1--1WRear Curtain Air Ba ...
