Kia Sedona: Lighting control
Third generation YP (2014-2024) / Kia Sedona YP Owners Manual / Features of your vehicle / Lighting / Lighting control
The light switch has a Headlight and a Parking light position.

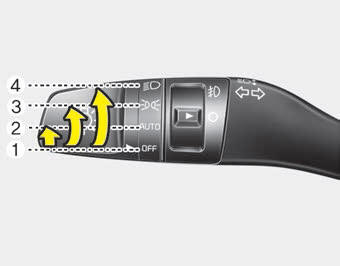

To operate the lights, turn the knob at the end of the control lever to one of the following positions:
(1) OFF position
(2) Auto light position (if equipped)
(3) Position & Tail light
(4) Headlight position
Daytime running light
Daytime Running Lights (DRL) can make it easier for others to see the front of
your vehicle during the day. DRL can be helpful in many different driving conditions,
and it is especially helpful af ...
Position & Tail light
When the light switch is in the parking light position, the tail, license and
instrument panel lights will turn ON. ...
