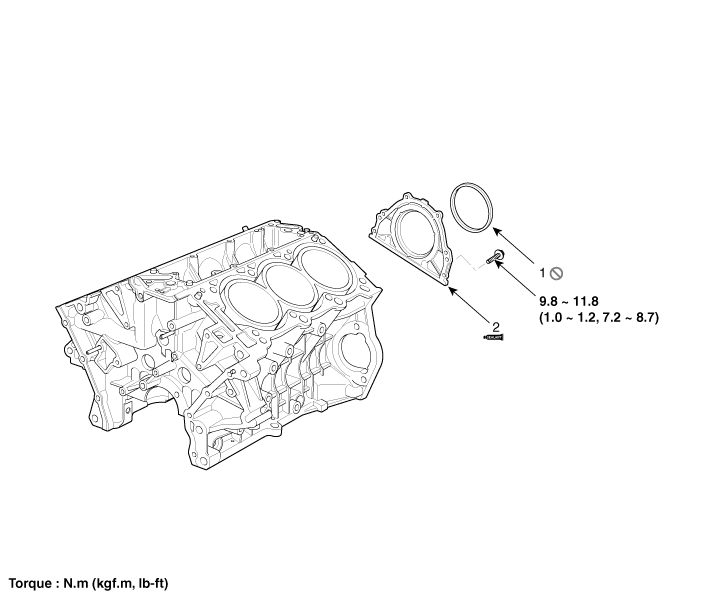

Kia Sedona: Rear Oil Seal Components and Components Location

Third generation YP (2014-2024) / Kia Sedona YP Service Manual / Engine Mechanical System / Cylinder Block / Rear Oil Seal Components and Components Location

Drive Plate Repair procedures

Removal and Installation 1. Remove the automatic transaxle. (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the adapter plate (A) and the drive plate (B). Tighten ...

Rear Oil Seal Repair procedures

Replacement 1. Remove the transaxle assembly. (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the drive plate. (Refer to Cylinder Block - "Drive Plate") 3. Remov ...
