Kia Sedona: Audio Unit Components and Components Location
Third generation YP (2014-2024) / Kia Sedona YP Service Manual / Body Electrical System / Audio / Audio Unit Components and Components Location
| Components |

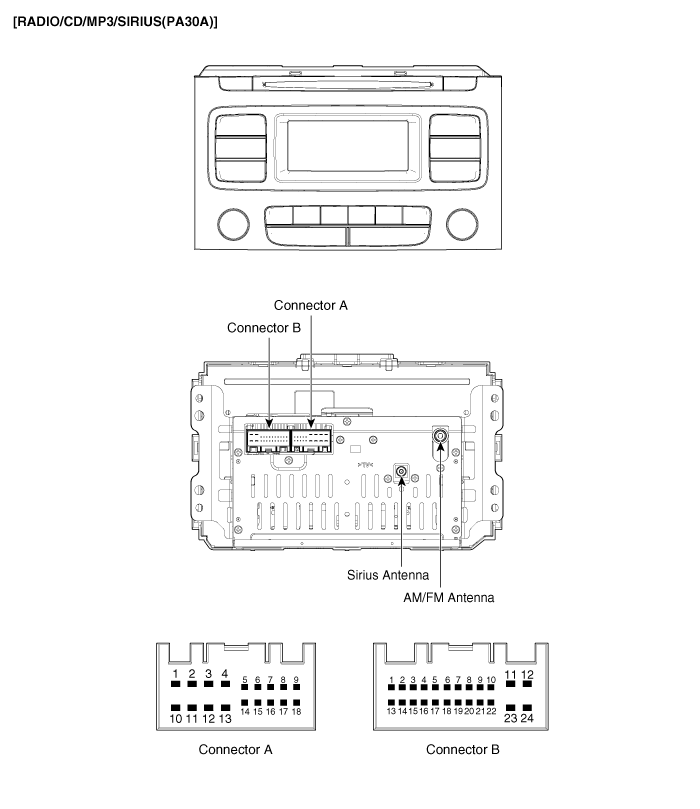

Connector Pin Information
| No. | Connector A | Connector B |
| 1 | Rear left speaker (+) | CAN High |
| 2 | Front left speaker (+) | - |
| 3 | Front right speaker (+) | - |
| 4 | Rear right speaker (+) | - |
| 5 | - | - |
| 6 | - | USB D (+) |
| 7 | - | USB VDD |
| 8 | Illumination (+) | AUX R IN |
| 9 | Detent | AUX GND |
| 10 | Rear left speaker (-) | Mic (+) |
| 11 | Front left speaker (-) | ACC |
| 12 | Front right speaker (-) | B+ |
| 13 | Rear right speaker (-) | CAN Low |
| 14 | - | - |
| 15 | - | - |
| 16 | - | Speed |
| 17 | Illumination (-) | - |
| 18 | Remote antenna | USB D (-) |
| 19 | USB GND | |
| 20 | AUX DETECT | |
| 21 | AUX L IN | |
| 22 | Mic (-) | |
| 23 | - | |
| 24 | Power GND |
Connector Pin Information
| No. | Connector A | Connector B | Connector C | ||
| Internal Amplifier | External Amplifier | Internal Amplifier | External Amplifier | ||
| 1 | Rear left speaker (+) | - | CAN high | CAN high | - |
| 2 | Front left speaker (+) | - | - | - | - |
| 3 | Front right speaker (+) | - | - | - | Camera GND |
| 4 | Rear right speaker (+) | - | - | - | Camera VIN |
| 5 | - | SPDIF GND | - | - | - |
| 6 | - | SPDIF (-) | Camera Vin | Camera Vin | - |
| 7 | - | - | Camera battery (+) | Camera battery (+) | - |
| 8 | Illumination (+) | Illumination (+) | AUX right in | AUX right in | - |
| 9 | - | - | AUX GND | AUX GND | - |
| 10 | Rear left speaker (-) | - | MIC (+) | MIC (+) | Camera Battery (+) |
| 11 | Front left speaker (-) | - | ACC | ACC | Camera PGND |
| 12 | Front right speaker (-) | - | Battery (+) | Battery (+) | R-Position |
| 13 | Rear right speaker (-) | - | CAN low | CAN low | - |
| 14 | - | - | - | - | - |
| 15 | - | SPDIF (+) | - | - | - |
| 16 | Door unlock | Door unlock | Speed | Speed | - |
| 17 | Illumination (-) | Illumination (-) | - | - | |
| 18 | Remote antenna | Remote antenna | Camera GND | Camera GND | |
| 19 | 　 | 　 | Reverse position | Reverse position | |
| 20 | AUX Detect | AUX Detect | |||
| 21 | AUX Left IN | AUX Left IN | |||
| 22 | MIC (-) | MIC (-) | |||
| 23 | Camera PGND | Camera PGND | |||
| 24 | Power GND | Power GND | |||
Connector Pin Information
| No. | Connector A | Connector B | ||
| Internal Amplifier | External Amplifier | Internal Amplifier | External Amplifier | |
| 1 | Rear left speaker (+) | - | CAN high | CAN high |
| 2 | Front left speaker (+) | - | - | - |
| 3 | Front right speaker (+) | - | - | - |
| 4 | Rear right speaker (+) | - | - | - |
| 5 | - | SPDIF GND | - | - |
| 6 | - | SPDIF (-) | Camera Vin | Camera Vin |
| 7 | - | - | Camera battery (+) | Camera battery (+) |
| 8 | Illumination (+) | Illumination (+) | AUX right in | AUX right in |
| 9 | - | - | AUX GND | AUX GND |
| 10 | Rear left speaker (-) | - | MIC (+) | MIC (+) |
| 11 | Front left speaker (-) | - | ACC | ACC |
| 12 | Front right speaker (-) | - | Battery (+) | Battery (+) |
| 13 | Rear right speaker (-) | - | CAN low | CAN low |
| 14 | - | - | - | - |
| 15 | - | SPDIF (+) | - | - |
| 16 | Door unlock | Door unlock | Speed | Speed |
| 17 | Illumination (-) | Illumination (-) | - | - |
| 18 | Remote antenna | Remote antenna | Camera GND | Camera GND |
| 19 | 　 | 　 | Reverse position | Reverse position |
| 20 | AUX Detect | AUX Detect | ||
| 21 | AUX Left IN | AUX Left IN | ||
| 22 | MIC (-) | MIC (-) | ||
| 23 | Camera PGND | Camera PGND | ||
| 24 | Power GND | Power GND | ||
Components and Components Location
Component Location
1. Audio unit2. Tweeter speaker3. Center speaker (Option)4. Roof antenna5. Front speaker6. Rear speaker7. Sub woofer speaker (Option)8. Antenna feeder cable9. Antenna feeder ca ...
Audio Unit Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the center fascia upper panel.
(Refer to Body - "Center Fascia Panel")
3.
Remove the audio head unit (A) after loosening ...
