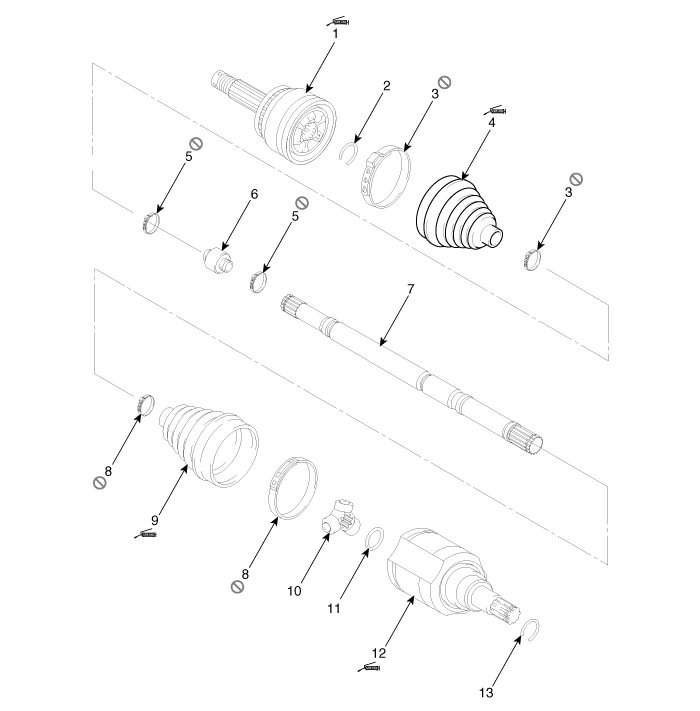

Components

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot
5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band
9. TJ boot
10. Spider assembly
11. Retainer ring
12. TJ housing
13. Housing circlip

Dynamic Damper Repair procedures
Removal 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - “Front Driveshaft”) 2. Remove the TJ joint assembly. (Refer to Driveshaft Assembly - “TJ Joint”) 3. Remo ...

BJ Boot Repair procedures
Removal 1. Remove the front driveshaft. (Refer to Driveshaft Assembly - “Front Driveshaft”) 2. Remove the TJ joint assembly. (Refer to Driveshaft Assembly - “TJ Joint”) 3. Rem ...
