Components Location

1. Blower Unit

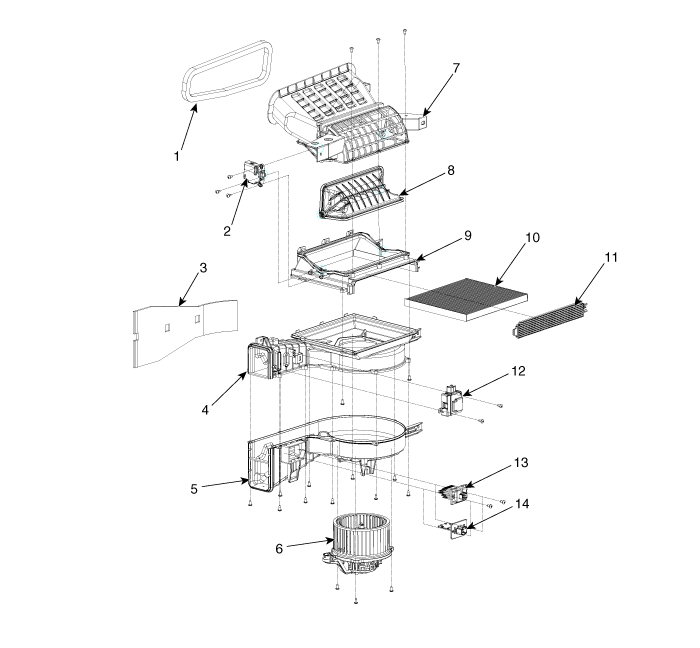

Components

1. Inlet Seal
2. Intake Actuator
3. Antinoise Pad
4. Blower Upper Case
5. Blower Lower Case
6. Blower Motor
7. Inlet Duct Upper Case

8. Inlet Door Assembly
9. Inlet Duct Lower Case
10. Air Filter
11. Air Filter Cover
12. Cluster Ionizer
13. FET Assembly
14. Blower resistor (Manual)

Blower Unit Repair procedures
