Third generation YP (2014-2025) / Kia Sedona YP Service Manual / Body (Interior and Exterior) / Sunroof / Components and Components Location

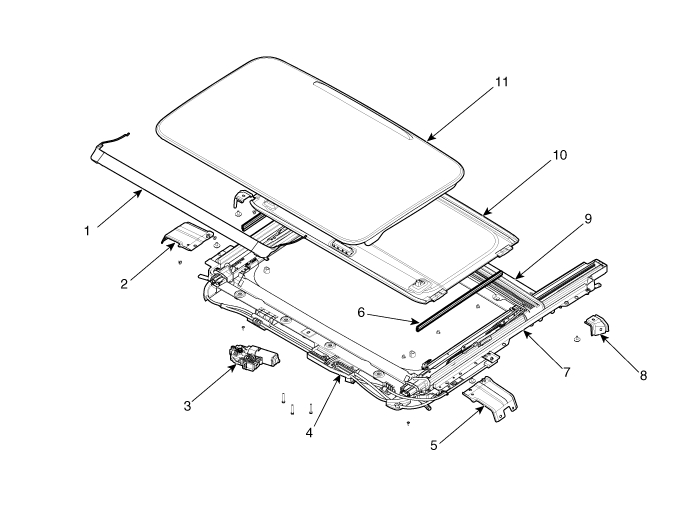

| Components |
| [Front] |
| 1. Deflector 2. Front frame bracket [RH] 3. Motor assembly 4. Sunroof frame assembly 5. Front frame bracket [LH] 6. Mechanism cover | 7. Mechanism 8. Rear frame bracket 9. Drain channel 10. Sunshade paner assembly 11. Glass panel assembly |
| [Rear] |
| 1. Deflector 2. Mechanism cover [RH] 3. Sunroof frame assembly 4. Motor assembly 5. Frame bracket [RH] | 6. Sunshade 7. Mechanism cover [LH] 8. Mechanism 9. Frame bracket [LH] 10. Glass panel assembly |
Sunroof
...
Repair procedures
Adjustment
How To Initialize
1.
Check that the glass is installed.
•
Finished height adjustment.
2.
Push UP the switch. (Keep holding the switch.)
3.
Release the sunroof UP b ...
