From front seat
Set the rear climate control selection (REAR ON) button to the ON position and press the rear fan speed control button in the front climate control panel to the desired position.
To change the fan speed, press () the button for higher speed, or press the () the button for lower speed. To turn the fan speed control off, press the REAR ON button.

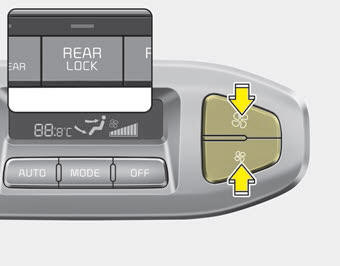

From rear seat
Set the rear climate control selection (REAR ON) button in the front climate control panel to the ON position and set the rear climate control selection(REAR LOCK) button in the front climate control panel to the OFF position and press the rear fan speed control button on the rear control panel to the desired position.
To change the fan speed, press () the button for higher speed, or press the () the button for lower speed. To turn the fan speed control off, press the rear blower OFF button.
Pantoscopic Camera Repair procedures
Removal
Front Pantoscopic Camera
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front bumper cover.
(Refer to Body - "Front Bumper Cover")
3.
Remove the pantoscopic camer ...
Schematic Diagrams
Circuit Diagram
...
