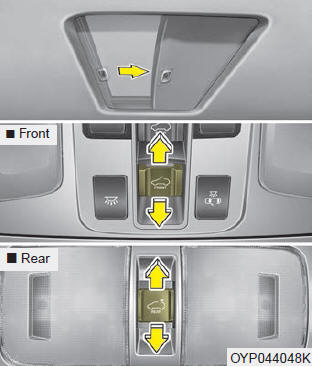

To open the sunroof, pull the sunroof control lever backward.
To close the sunroof, push the sunroof control lever forward.
To open the sunroof automatically :
Pull the sunroof control lever backward to the second detent position and then release it.
The sunroof will open as below :
- Front sunroof : sunroof will slide all the way open.
- Rear sunroof : sunroof will not open fully.
To open the sun roof fully, pull the sunroof control lever again.
To stop the sunroof sliding at any point, pull or push the sunroof control lever momentarily.
To close the sunroof automatically :
Pull the sunroof control lever backward to the second detent position and then release it. The sunroof will slide all the way open.
To stop the sunroof sliding at any point, pull or push the sunroof control lever momentarily.
While driving with the sunroof in an open (or partially open position), your vehicle may demonstrate a wind buffeting or pulsation noise. This noise is a normal occurrence and can be reduced or eliminated by taking the following actions. If you experience the noise with the sunroof open, slightly reduce the size of the sunroof opening.
