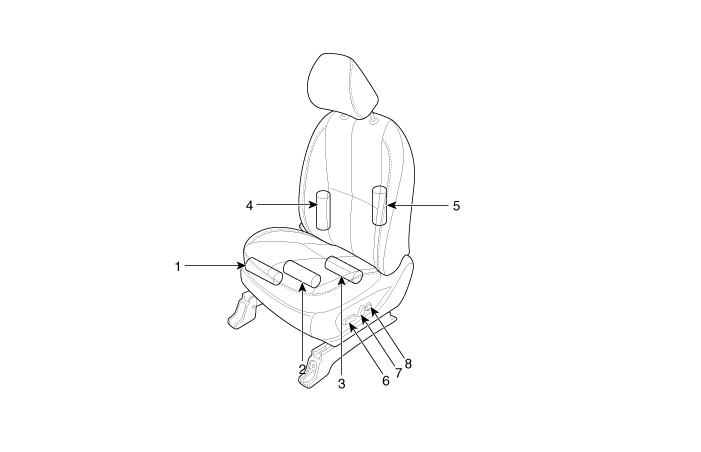

Component Location

1. Front tilt motor
2. Slide motor
3. Rear height motor
4. Reclining motor
5. Lumbar support motor (Vertical)
6. Seat cushion switch
7. Seat back switch
8. Lumbar support switch
